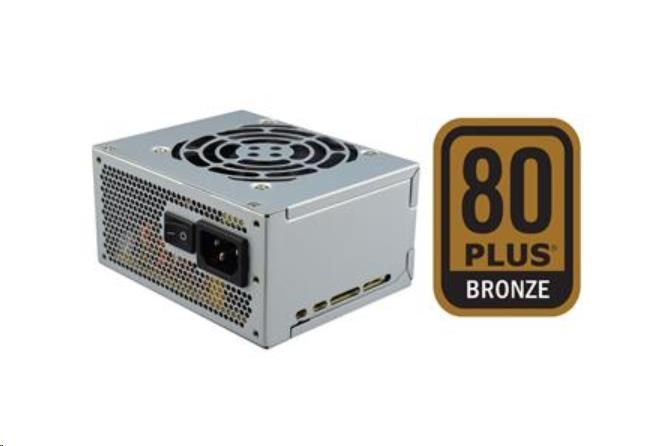

FSP/Fortron SFX FSP350-50SAC 80PLUS BRONZE, bulk, 350W
FSP SAC Series features with eco-friendly design, which allows SAC series to reach up to 85% efficiency. SAC series also equipped with complete protection to prevent your system from damage. SAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
- Certified CB 62368-1
- Meet 80 Plus Bronze
- Intel Design ATX 12V V1.4
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
TECHNICAL SPECIFICATIONS
Model |
FSP350-50SAC |
Format |
SFX |
Power supply |
350W |
PFC |
Active PFC |
Power supply fan |
80mm |
Efficiency |
80 Plus Bronze |
Dimensions (L x W x H) |
100 x 125 x 63.5 (mm) 3.94 x 4.92 x 2.50 (inch) |
Hold-up time at 100% |
115V / 60Hz: >= 16ms 230V / 50Hz: >= 16ms |
Operating altitude |
2,000 meters above sea level |
Working temperature |
0°C to 50°C |
Storage temperature |
-20°C to +80°C |
Working humidity |
90% RH non-condensing |
Storage humidity |
90% RH non-condensing |
MTBF |
100,000 hours of continuous operation at 25°C, Max. output load |
Input voltage |
90-264Vac |
Input frequency |
50-60Hz |
Input current |
115Vac @ 5A, 230Vac @ 2A |
