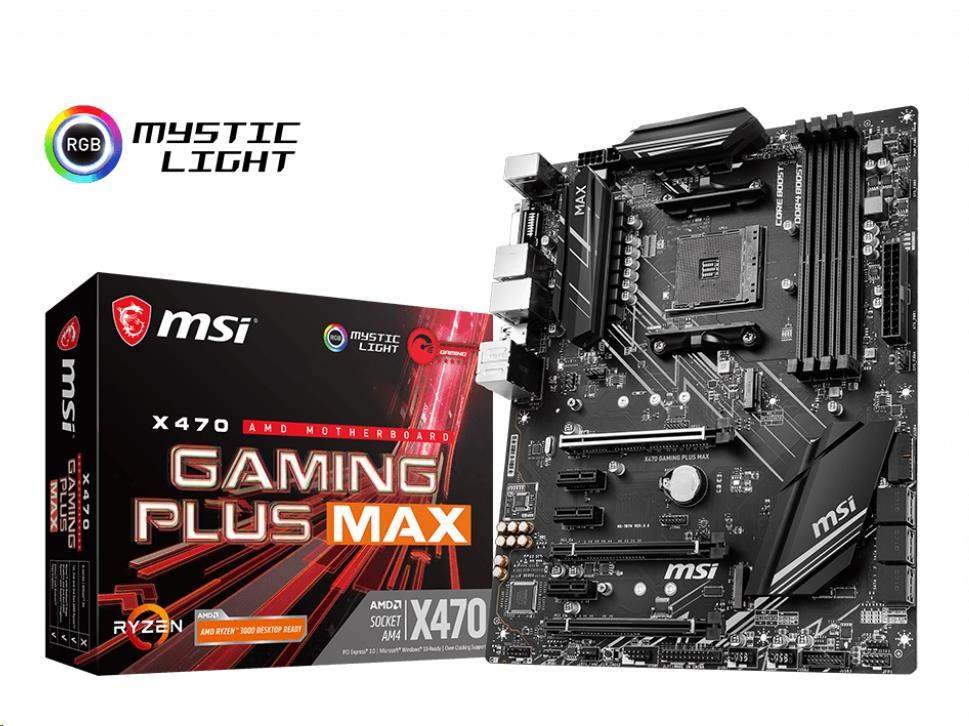

X470 GAMING PLUS MAX
Satisfying gamers with what they really need, X470 GAMING PLUS MAX is equipped with Core boost, Turbo M.2, Audio Boost, USB 3.2 Gen2
- Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4
- Supports DDR4 Memory, up to 4133(OC) MHz
- Lightning Fast Game experience: TURBO M.2, AMD StoreMI Technology, AMD Turbo USB 3.2 Gen2
- Core Boost: With premium layout and optimized power design to support more cores and provide better performance.
- Mystic Light and Mystic Light Sync: 7 colors / 7 effects in one click. Synchronize other RGB solutions for customization.
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
- MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports 3-Way AMD Crossfire™
TECHNICAL SPECIFICATIONS
Socket |
AM4 |
CPU (max support) |
RYZEN 9 |
Chipset |
AMD X470 Chipset |
DDR4 Memery |
1866/ 2133/ 2400/ 2667 Mhz by JEDEC For AMD Ryzen Gen3 (R5/R7/R9) 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 Mhz by A-XMP OC MODE For AMD Other CPU 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 Mhz by A-XMP OC MODE |
Memory Channel |
Dual |
DIMM Slots |
4 |
Max Memory (GB(/ |
64 |
PCI-EX16 |
2 |
PCI-E GEN |
Gen3 (PCIE_1, PCIE_4), Gen2 (PCIE_6) |
PCI-EX1 |
3 |
SATAIII |
6 |
M2 Slot |
2 |
RAID |
0/1/10 |
TPM (Header) |
1 |
LAN |
1x Realtek 8111H Gigabit LAN controller |
USB 3.2 ports (front) |
4 (Gen2, Type A) |
USB 3.2 ports (rear) |
2 (Gen2, Type A), 4 (Gen1, Type A) |
USB 2.0 ports (front) |
4 |
USB 2.0 (rear) |
2 |
Serial port (front) |
1 |
Parallel port (front) |
1 |
Audio ports (rear) |
Realtek ALC892 Codec |
DVI |
1 |
HDMI |
1 |
Directx |
12 |
Form FActor |
ATX |
Crossfire |
Y |
Operating System |
Support for Windows 10 64-bit |
