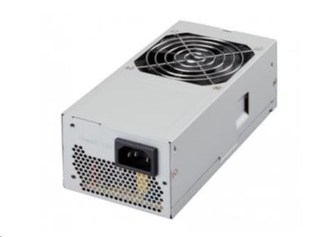

FSP/Fortron TFX FSP250-50TAC, >85%, bulk, 250W
FSP TAC Series features with eco-friendly design, which allows TAC series to reach up to 85% efficiency. TAC series also equipped with complete protection to prevent your system from damage. TAC series does the job efficiently and reliably, making it a stable power supply unit built to satisfy the demands of all kind of system build.
- Certified CB 62368-1
- Meet 80 Plus Bronze
- Intel Design ATX 12V V1.4
- Low Ripple & Noise
- Over Current Protection
- Over Temperature Protection
- Over Voltage Protection
TECHNICAL SPECIFICATIONS
Model |
FSP250-50TAC |
Format |
TFX |
Efficiency |
80 Plus Bronze |
Dimensions (L x W x H) |
175 x 85 x 65 mm 6.89 x 3.35 x 2.56 inch |
Hold-up time |
115V / 60Hz: >= 16ms at 80% load 230V / 50Hz: >= 16ms at 80% load |
Operating altitude |
2,000 meters above sea level |
MTBF |
100,000 hours of continuous operation at 25°C, Max. output load |
Working temperature |
0°C to 50°C |
Storage temperature |
-20°C to + 80°C |
Working humidity |
90% RH non-condensing |
Storage humidity |
90% RH non-condensing |
Input voltage |
90-264Vac |
Input frequency |
50-60Hz |
Input current |
115Vac @ 3A, 230Vac @ 1.5A |
