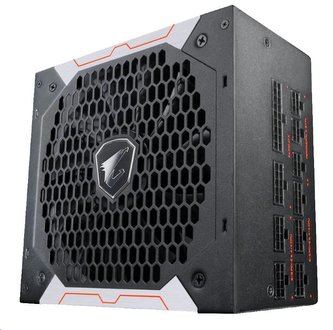

AORUS P750W 80+ GOLD Modular
- Fully Modular Design
- High quality 100% Japanese Capacitors
- 135mm 2 ball bearing smart fan with fan stop function
- 80 PLUS Gold certified: above 90% efficiency at 50% load
- Single +12V rail
- OCP/OTP/OVP/OPP/UVP/SCP protection
- 10 years warranty (Adjusted according to different regions)
TECHNICAL SPECIFICATIONS
Model |
GP-AP750GM |
Type |
Intel Form Factor ATX 12V v2.31 |
PFC |
Active PFC (>0.9 typical) |
Input Voltage |
100-240 Vac (full range) |
Input Current |
10A |
Input Frequency |
47-63 Hz |
Output Capacity |
750W |
Dimension |
150 x 160 x 86mm |
Fan Type |
135mm Double ball bearing fan |
Efficiency |
90% at typical load |
MTBF |
>100,000 hours |
Protection |
OVP/OPP/SCP/UVP/OCP/OTP |
Cable Type |
Flat, All black |
Connectors |
ATX/MB 20+4 Pin x 1 : 650mm CPU/EPS 4+4 Pin x 2 : 800mm*1 , 650mm*1 PCI-e 6+2 Pin x 4 : 750mm*2 , 650mm+150mm*1 SATA x6 + 4 Pin Peripheral x2 : 550mm+100mm+100mm+100mm*1 450mm+100mm+100mm+100mm *1 4 Pin Peripheral x 3 + 4 pin Floppy x 1 : 450mm+100mm+100mm+100mm*1 4 Pin Floppy x 1 : 100mm |
