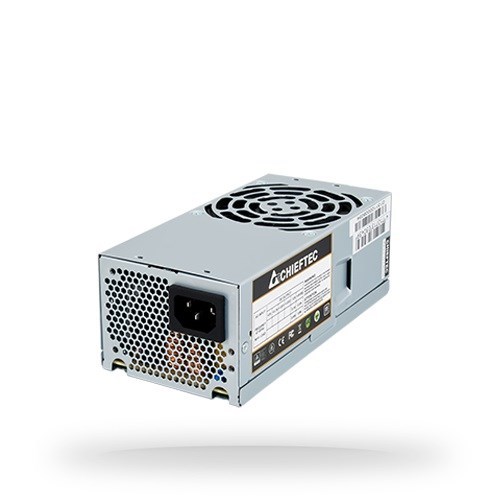

GPF-300P
The latest generation of TFX power supplies comes with a new model: GPF-300P (12V version 2.3). Equipped with both a state-of-the-art interior and 80PLUS Bronze efficiency, this power supply is ideal for home entertainment systems or small size systems. Compatible with both Intel/AMD processors, featuring with active PFC and a smooth running, temperature-controlled fan, the CHIEFTEC GPF-300P provides reliable performance for enthusiast seeking for efficiency.
SPECIFICATIONS:
Performance
Model |
Smart 300W |
Article no. |
GPF-300P |
EAN code |
4710713234666 |
Weight (without/with package) |
1.07 kg / 1.13 kg |
AC Input |
115-230V / 6.3A |
Frequency |
47-63Hz |
+5V |
15A |
+3,3V |
16A |
+5V & +3,3V combined |
95W |
+12V 1 |
14A |
+12V 2 |
15A |
+12V 1 & +12V 2 combined |
- |
P.F. |
>0,9 |
-12V |
0,3A / 3,6W |
+5VsB |
2.0A / 10W |
Maximum Power |
300W |
Connectors
20+4PIN ATX |
1 |
8 PIN EPS (4+4) |
1 |
SATA |
4 |
MOLEX |
2 |
FLOPPY |
1 |
Cable length
20+4PIN ATX |
300 |
8 PIN EPS (4+4) |
350 |
MOLEX/MOLEX/FLOPPY |
350/150/150 |
SATA |
2x 350/150 |
Features
Specification |
ATX 12V 2.3 |
Form factor |
PS II |
Efficiency |
80 PLUS Bronze |
Dimension (DxWxH) |
175mm x 85mm x 65mm |
PFC |
Active PFC (0.9) |
Fan |
80mm silent fan |
Security |
- AFC (Automatic Fanspeed Control)
- OPP (Overload Protection)
- OVP (Overvoltage Protection)
- SCP (Short-circuit Protection)
- SIP (Surge & Inrush Protection)
- UVP (Undervoltage Protection)
|
Warranty |
24 Months |
