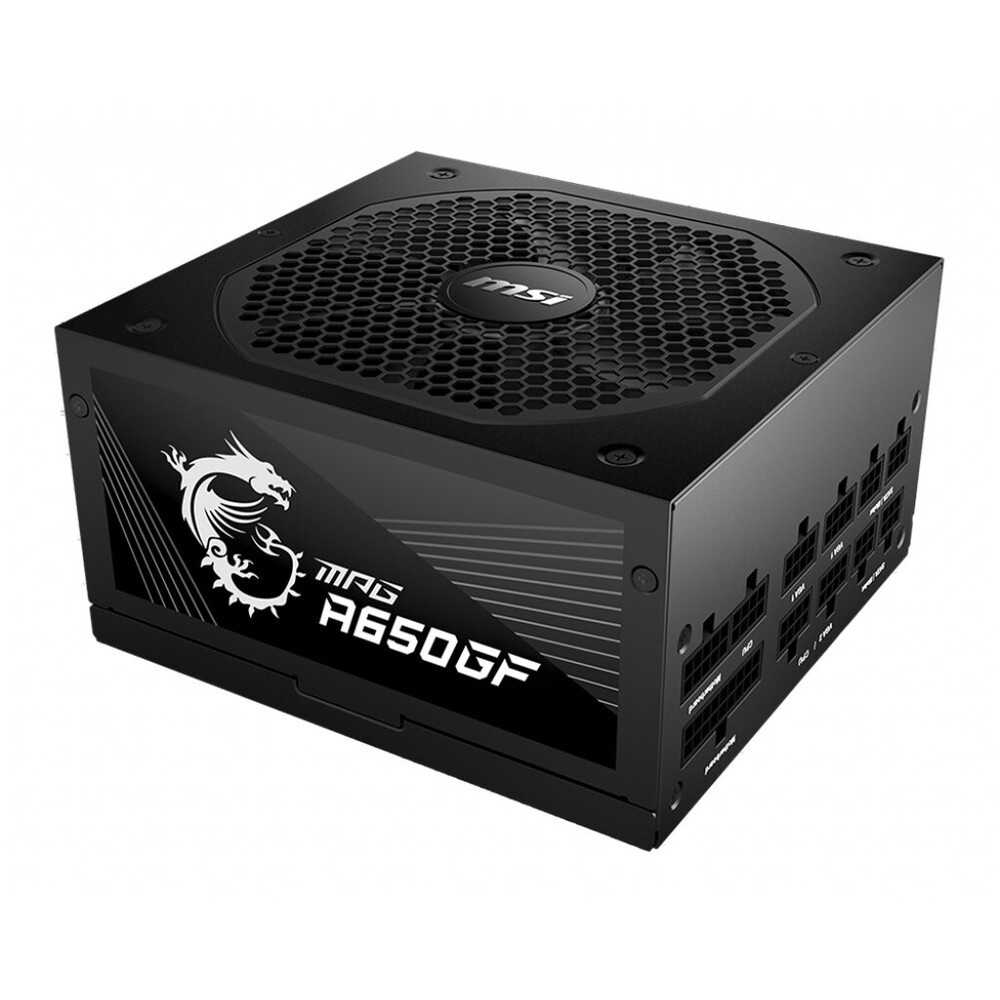

MPG A650GF
- Supports the NVIDIA GeForce RTX™ 30 Series GPUs
- Full modular cable design
- Flat cable equipment
- 10-year warranty
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
TECHNICAL SPECIFICATIONS
PRODUCT NAME |
MPG A650GF |
PSU FORM FACTOR |
ATX |
POWER WATT |
650W |
INPUT VOLTAGE |
100-240Vac |
INPUT CURRENT |
115Vac/10.0A max. 230Vac/5.0A max. |
INPUT FREQUENCY |
47Hz ~ 63Hz |
EFFICIENCY |
Up to 90% (80 Plus Gold) |
FAN SIZE |
140 mm |
DIMENSION |
150mm x160mm x86mm |
PFC TYPE |
Active PFC |
PROTECTION |
OCP / OVP / OPP / OTP / SCP / UVP |
