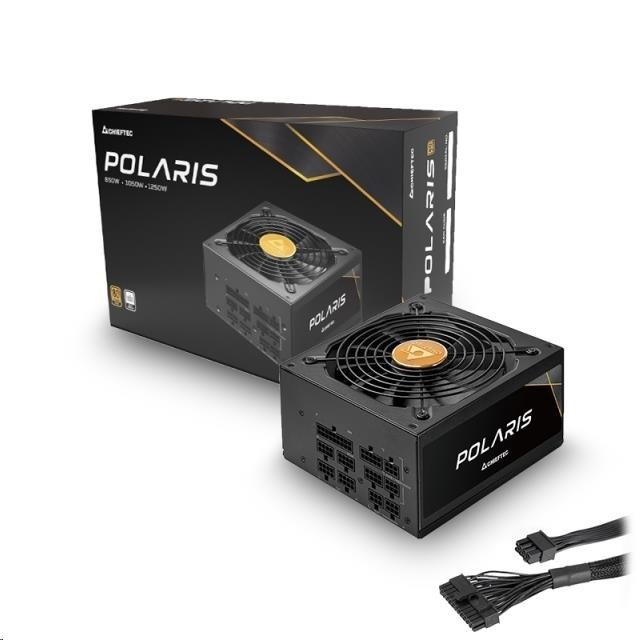

POLARIS SERIES
- 80 PLUS Gold certified efficiency
- Fully modular cable management
- LLC Half-Bridge converter with DC-to-DC technology
TECHNICAL SPECIFICATIONS
Model |
POLARIS 850W |
Article no. |
PPS-850FC |
EAN code |
0753263077356 |
Weight (wthout/with package) |
2.6 kg / 3.3 kg |
AC input |
100 - 240 V / 15A |
Frequency |
50 - 60 Hz |
+5V |
22 A |
+3.3 V |
22 A |
+5 V & +3.3 V combined |
120 W |
+12 V1 |
70.8 A |
+12V2 |
- |
+12V1, +12V2 combined |
850 W |
P.F. |
0.9 |
-12 V |
0.3 A / 3.6 W |
+ 5VBS |
3.0 A / 15 W |
Maximum Power |
850 W |
Connectors |
20+4 PIN ATX |
1 |
8 PIN EPS (4+4) |
2 |
8 PIN PCIe (6+2) |
4 |
SATA |
12 |
MOLEX |
4 |
Cable length (mm) |
20+4 PIN ATX |
650 |
8 PIN EPS (4+4) |
2 x 650 |
8 PIN PCIe (6+2) |
2 x 600/100 |
SATA |
3 x 550/100/100/100 |
MOLEX / FLOPPY |
550/100/100/100 |
Features |
ATX12V Version |
ATX 12V 2.3 |
Efficiency |
80+ Gold |
Dimension (D x W x H) |
160 x 150 x 86 mm |
PFC |
Active PFC |
Fan |
140 mm silent fan |
Security |
AFC (Automatic Fan speed Control) OCP (Over Current Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OVP (Over Voltage Protection) SCP (Short Circuit Protection) SIP (Surge & Inrush Protection) UVP (Under Voltage Protection) |
Warranty |
24 Months |
