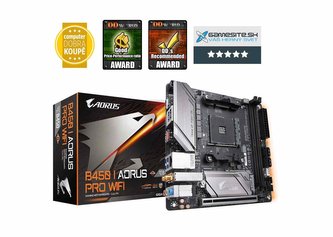

B450 I AORUS PRO WIFI (rev. 1.0)

AMD B450 AORUS Motherboard with 4+2 Phase IR Digital PWM, Intel Dual Band 802.11ac Wave2 WIFI, M.2 with Thermal Guard, ALC1220-VB Audio, Intel GbE LAN with cFosSpeed, CEC 2019 ready

Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Intel Dual Band 802.11ac Wave2 WIFI & BT 5
DisplayPort, HDMI*2 Ports for Multiple Display
Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Thermal Guard
ALC1220-VB Enhance 114dB(Rear)/ 110dB(Front) SNR in Microphone with High-end Audio Capacitors
RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips
Intel GbE LAN with cFosSpeed Internet Accelerator Software
Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP
APP Center Including EasyTune™ and Cloud Station™ Utilities
CEC 2019 Ready, Save Power with a Simple Click

TECHNICAL SPECIFICATIONS

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

CPU	\n \n AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors (Please refer \"CPU Support List\" for more information.) \n \n
Chipset	\n \n AMD B450 \n \n
Memory	\n \n 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory \n Dual channel memory architecture \n Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules \n Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules ECC function is limited if using an AMD Athlon™ 200-series APU. \n Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules \n Support for Extreme Memory Profile (XMP) memory modules (Please refer \"Memory Support List\" for more information.) \n \n
Onboard Graphics	Integrated Graphics Processor: \n \n 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for DisplayPort 1.2 version. \n 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz(Note) Support for HDMI 2.0 version and HDCP 2.2.(Note) One of HDMI function is limited if using an AMD Athlon™ 200-series APU. \n \nSupport for up to 3 displays at the same time Maximum shared memory of 16 GB (Note) Actual support may vary by CPU.
Expansion Slots	\n \n 1 x PCI Express x16 slot, running at x16(Note) (The PCIEX16 slot conforms to PCI Express 3.0 standard.) \n 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI) (Note) Actual support may vary by CPU. \n \n
Storage Interface	\n \n 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) \n 4 x SATA 6Gb/s connectors \n Support for RAID 0, RAID 1, and RAID 10 \n \n
LAN	\n \n Intel GbE LAN chip (10/100/1000 Mbit) \n \n
Wireless Communication Module	\n \n Wi-Fi 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band \n BLUETOOTH 5 \n Support for 11ac 160 MHz wireless standard and up to 1.73 Gbps data rate * Actual data rate may vary depending on environment and equipment. Only support for Windows 10 64-bit. \n \n
Bluetooth
Audio	\n \n Realtek ALC1220-VB codec \n High Definition Audio \n 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. \n Support for S/PDIF Out \n \n
USB	Chipset: \n \n 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel \n 2 x USB 3.1 Gen 1 ports available through the internal USB header \n 2 x USB 2.0/1.1 ports available through the internal USB header \n \nIntegrated in the APU: \n \n 4 x USB 3.1 Gen 1 ports on the back panel \n \n
Back Panel Connectors	\n \n 1 x DisplayPort \n 2 x HDMI ports \n 2 x USB 3.1 Gen 2 Type-A ports (red) \n 4 x USB 3.1 Gen 1 ports \n 1 x RJ-45 port \n 2 x SMA antenna connectors (2T2R) \n 3 x audio jacks \n \n
Internal I/O Connectors	\n \n 1 x 24-pin ATX main power connector \n 1 x 8-pin ATX 12V power connector \n 1 x CPU fan header \n 1 x system fan header \n 1 x digital LED strip header \n 1 x CPU cooler LED strip/RGB LED strip header \n 4 x SATA 6Gb/s connectors \n 1 x M.2 Socket 3 connector \n 1 x front panel header \n 1 x front panel audio header \n 1 x S/PDIF Out header \n 1 x speaker header \n 1 x USB 3.1 Gen 1 header \n 1 x USB 2.0/1.1 header \n 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) \n 1 x Clear CMOS jumper \n 1 x chassis intrusion header \n \n
I/O Controller	\n \n iTE I/O Controller Chip \n \n
H/W Monitoring	\n \n Voltage detection \n Temperature detection \n Fan speed detection \n Overheating warning \n Fan fail warning \n Fan speed control Whether the fan speed control function is supported will depend on the cooler you install. \n \n
Unique Features	\n \n Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS 3D OSD AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker V-Tuner \n Support for Q-Flash \n Support for Xpress Install \n \n
Bundle Software	\n \n Norton Internet Security (OEM version) \n cFosSpeed \n \n
BIOS	\n \n 1 x 128 Mbit flash \n Use of licensed AMI UEFI BIOS \n PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 \n \n
Operating System	\n \n Support for Windows 10 64-bit \n Support for Windows 7 64-bit To support Windows 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU. * Please download the \"Windows USB Installation Tool\" from GIGABYTE\'s website and install it before installing Windows 7. \n \n
Form Factor	\n \n Mini-ITX Form Factor; 17.0cm x 17.0cm \n \n
Note	\n \n Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors\' website or 3rd party website. \n Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website. \n \n
