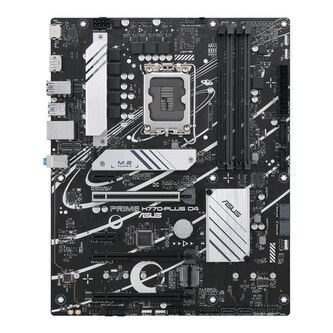

PRIME H770-PLUS D4

TECHNICAL SPECIFICATIONS

CPU\nIntel Socket LGA1700 for 13^th Gen Intel Core™ Processors & 12^th Gen Intel Core™, Pentium Gold and Celeron Processors*

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

\n
• Refer to www.asus.com for CPU support list.
\n

Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset \nIntel H770 Chipset

Memory \n4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem

\n
• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
\n

Graphics\n1 x DisplayPort

1 x HDMI port

\n
• Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
\n

Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots \nIntel 13^th & 12^th Gen Processors*

1 x PCIe 5.0 x16 slot

Intel H770 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

2 x PCIe 3.0 x1 slots

\n
• Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
\n

Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Storage \nTotal supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel 13^th & 12^th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel H770 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

\n
• Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
\n

Ethernet\n1 x Realtek 2.5Gb Ethernet

Wireless & Bluetooth\nVertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.

USB \nRear USB (Total 8 ports)

3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Audio\nRealtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback

Audio Features

\n
• Audio Shielding
\n

\n
• Premium audio capacitors
\n

\n
• Dedicated audio PCB layers
\n

\n
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
\n

Back Panel I/O Ports \n3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Vertical M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors\nFan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x Aura RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt™ (USB4) header

Special Features \nASUS 5X PROTECTION III

\n
• DIGI+ VRM
\n

\n
• LANGuard
\n

\n
• Overvoltage Protection
\n

\n
• SafeSlot Core+
\n

\n
• Stainless-Steel Back I/O
\n

ASUS Q-Design

\n
• Q-DIMM
\n

\n
• Q-LED Core
\n

\n
• Q-Slot
\n

ASUS Thermal Solution

\n
• M.2 heatsink
\n

\n
• VRM heatsink design
\n

ASUS EZ DIY

\n
• ProCool
\n

Aura Sync

\n
• Aura RGB headers
\n

\n
• Addressable Gen 2 headers
\n

Software Features\nASUS Exclusive Software

Armoury Crate

\n
• Aura Creator
\n

\n
• Aura Sync
\n

\n
• Fan Xpert 2+
\n

\n
• Power Saving
\n

AI Suite 3

\n
• DIGI+ VRM
\n

\n
• PC Cleaner
\n

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

\n
• ASUS CrashFree BIOS 3
\n

\n
• ASUS EZ Flash 3
\n

\n
• ASUS UEFI BIOS EZ Mode
\n

BIOS \n192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability \nWOL by PME, PXE

Accessories \nCables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

2 x Screw Packages for M.2 SSD

Documentation

1 x User guide

Operating System \nWindows 11, Windows 10 64-bit

Form Factor \nATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
