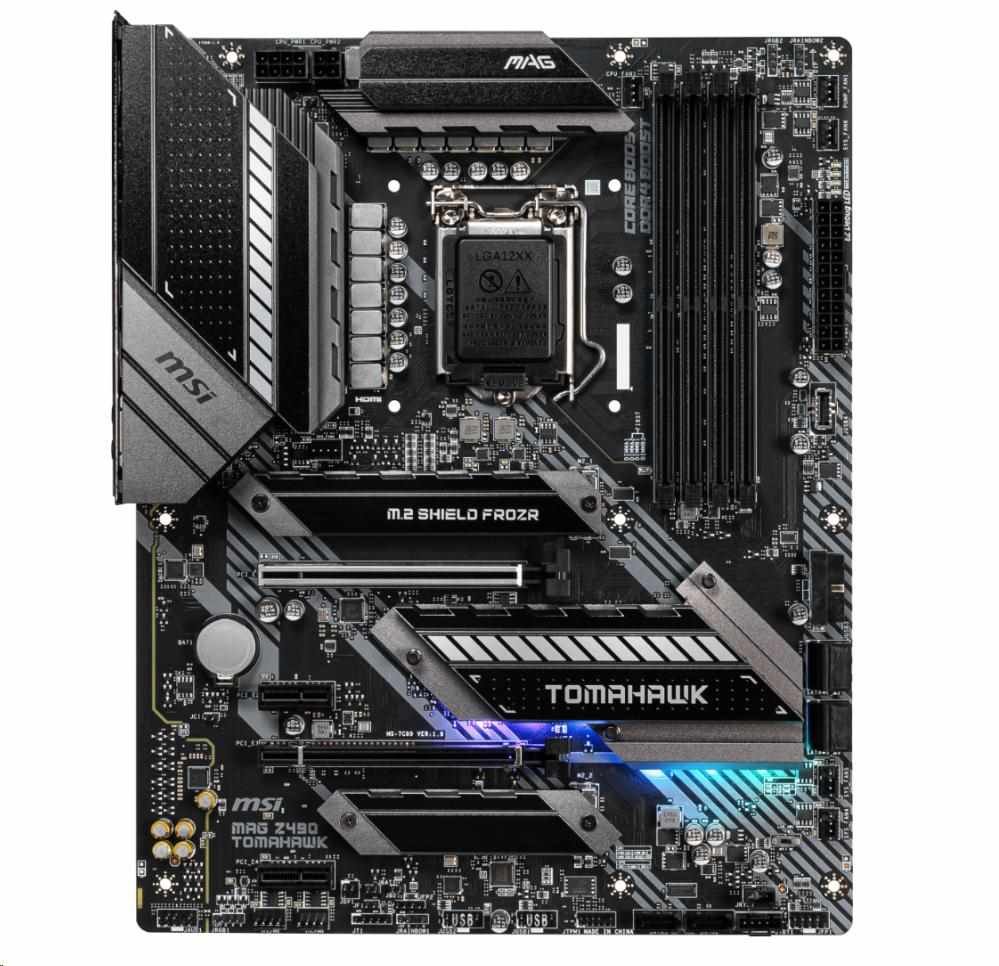

MAG Z490 TOMAHAWK
Features
2.5G LAN
Onboard 2.5G LAN with LAN manager, delivering the best online gaming experience.
Twin Turbo M.2
With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
M.2 SHIELD FROZR
Onbeard M.2 thermal solution to keep M.2 SSDs safe while preventing throttling, making them run cooler and faster.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
Lightning USB 20G
Powered by ASMedia SSM3242 USB 3.2 Gen 2x2 controller, offers the fastest USB speeds with stability.
Mystic Light
Personalize your PC with 16.8 million colors / 29 effects with MSI Mystic Light APP, making your system come alive with infinity.
TECHNICAL SPECIFICATIONS
CPU Support |
Supprts 10th Gen Intel Corel and Pentium Gold / Celeron processors |
CPU Socket |
LGA 1200 |
Chipset |
Intel Z490 |
Graphics Interface |
2x PCI-E 3.0 x 16 slots Support 2-way AMD CrossFire Technology |
Display Interface |
1x DisplayPort, 1x HDMI - Requires Processor Graphics |
Memory Support |
4 DIMMs, Dual Channel DDR4-4800MHz (OC) |
Expansion Slots |
2x PCIe 3.0 x1 slots |
Storage |
2x M.2 slots, support Intel Optane Technology 6x SATA 6Gb/s |
USB |
1x USB 3.2 Gen 2 2x2 20Gbps (Type-C) + 1x USB 3.2 Gen 2 10Gbps (Type-A) + 7x USB 3.2 Gen 1 5Gbps (6x Type-A + 1 Type-C) + 6x USB 2.0 |
LAN |
Realtek 8125B 2.5G LAN Intel I219V Gigabit LAN |
Audio |
8-Channel (7.1) HD Audio with Audio Boost |
