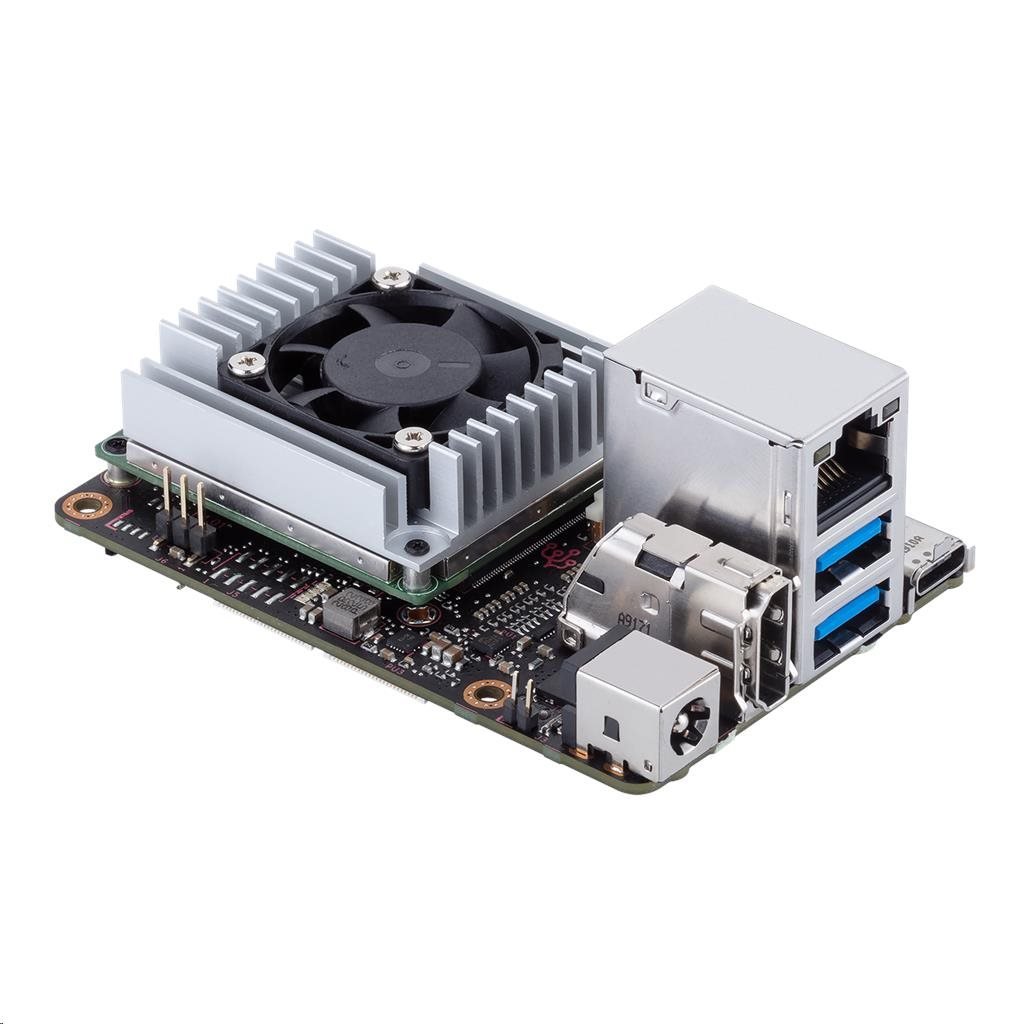

Tinker Edge T
Develop and deploy powerful AI applications
- SBC developer board featuring the Google Edge TPU and ARM processor for AI applications, an advanced power design and easy machine-learning model deployment
- Google Edge TPU
- More connectivity options for developers
- Multi-platform tools for easy machine-learning model deployment and image burning
TECHNICAL SPECIFICATIONS
SoC |
NXP i.MX 8M |
CPU |
LPDDR4 1GB |
GPU |
GC7000 Lite |
NN processor |
Google Edge TPU ML accelerator coprocessor |
Display |
1 x HDMI with CEC hardware ready 1 x 22-pin MIPI DSI |
Memory Size |
Dual-CH LPDDR4 1GB |
Storage |
8GB eMMC Micro SD(TF) card slot (push/pull) |
Connectivity |
1 x RTL8211F-CG Gb LAN 1 x 802.11 a/b/g/n/ac wireless & Bluetooth 4.2 |
USB |
2 x USB 3.2 Gen1 Type-A 1 x USB 3.2 Gen1 Type-C OTG |
Camera Interface |
2 x 24-pin MIPI CSI-2 |
Internal Headers |
1 x 40-pin headers includes: - up to 28 x GPIO pins - up to 1 x SPI bus - up to 2 x I2C bus - up to 2 x UART - up to 3 x PWM - up to 1 x PCM/I2S - 2 x 5V power pins - 2 x 3.3V power pins - 8 x ground pins 1 x Boot mode switch 1 x 2-pin Reset header 1 x 2-pin DC Fan header
|
Power Connector (up to 45W) |
12-19v DC Power Input Jack (5.5/2.5mm) |
OS Support |
Debian 9 |
Dimensions |
3.37 inch x 2.125 inch (8.55 cm x 5.4 cm) |
Environment |
Operation temperature: 0? ~ 50? Non operation temperature: -40? ~ 80? Non operation humidity: 0% ~ 85% (Non condensing) |
