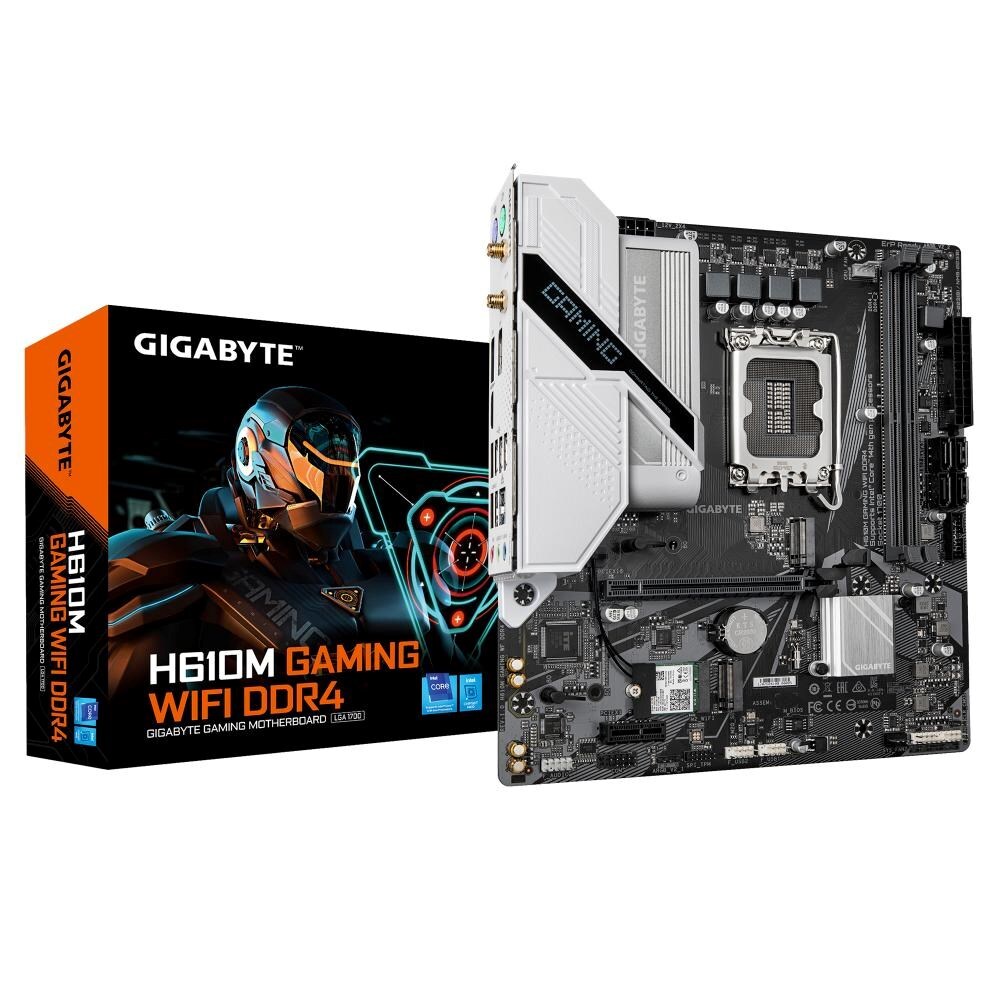

H610M GAMING WIFI DDR4

• Supports Intel Core™ 14th/ 13th /12th processors


• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs


• 6+1+1 Hybrid Digital VRM Design


• EZ-Latch:PCIe 4.0x16 Slot with Quick Release Design


• Fast Networks:Wi-Fi 802.11ac & GbE LAN


• NVMe PCIe 3.0 x4 M.2


• High Quality Audio Capacitors and Audio Noise Guard


• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™,Pentium Gold and Celeron Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU

Chipset

Intel H610 Express Chipset

Memory

Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity)of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, datarate (speed), and number of DRAM modules, please refer to "Memory SupportList" on GIGABYTE's website for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:- 2 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3. Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)Support for up to triple-display at the same time

Audio

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure7.1-channel audio, access the audio software for audio settings.

LAN

Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Wireless Communication module

Intel Wireless- AC 9560 (PCB rev. 1.0)- WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band- BLUETOOTH 5.1- Support 11ac 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)

Expansion Slots

CPU:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16Chipset:- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSDsupport) (M2P_SB)- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x2 SSD support)(M2Q_SB)- 4 x SATA 6Gb/s connectors

USB

Chipset:- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available throughthe internal USB header)- 2 x USB 2.0/1.1 ports available through the internal USB headerChipset+2 USB 2.0 Hubs:- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available throughthe internal USB header)

Internal I/O Connectors

1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors2 x addressable RGB Gen2 LED strip headers1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard port1 x PS/2 mouse port2 x SMA antenna connectors (2T2R)2 x DisplayPorts1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fanyou install.

BIOS

1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supportedfunctions of each application may also vary depending on motherboardspecifications.Support for Q-Flash

Bundled Software

Norton Internet Security (OEM version)LAN bandwidth management software

Operating System

Support for Windows 11 64-bitSupport for Windows 10 64-bit

Form Factor

Micro ATX Form Factor; 24.4cm x 22.0cm
