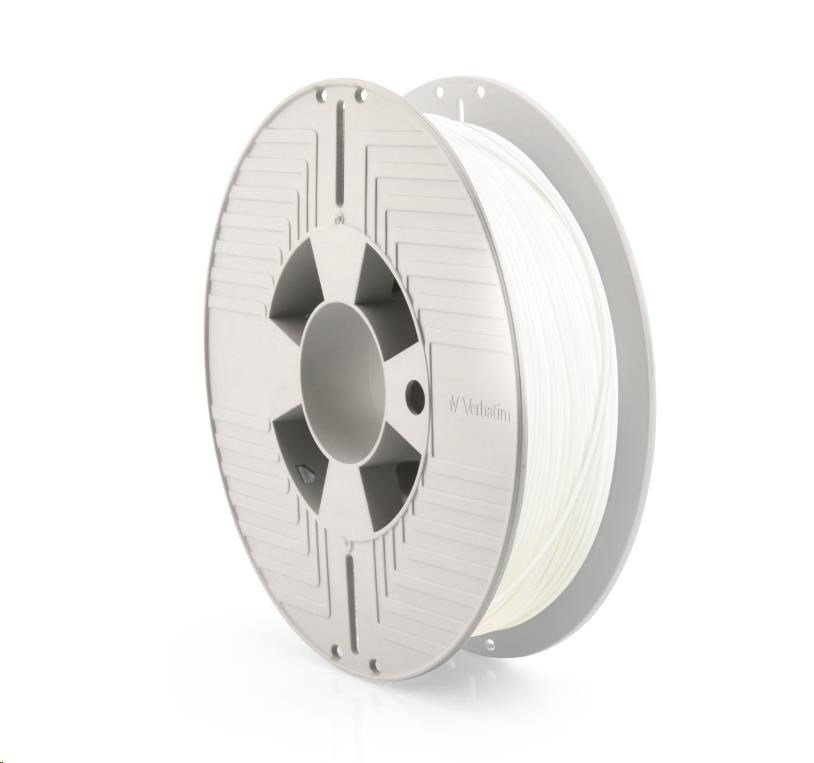

                                                                Verbatim BVOH filament 1.75 mm - Transparent
A high quality water soluble support material that can be used with a number of different polymers and easily dissolved in cold water. This environmentally-friendly material provides support for printing objects with overhangs or particularly complex structures. Verbatim BVOH follows the tightest quality controls as standard, ensuring excellent layer-forming and adhesion properties.
Features
- Butenediol Vinyl Alcohol Co-polymer (BVOH) for material extrusion
- Water dissolvable support material
- Waste can be disposed with household effluent
- Excellent layer-forming, emulsifying, adhesive
- Best in combination with ABS, PLA, and PET material
- Light- and UV-sensitive
- High solubility
- Main applications: Support material for filaments, printing projects with overhangs or complex objects
 >20 times weight of water to this material required for disposal (i.e >20cc water to 1g BVOH) with a maximum of 2kg of BVOH per day. When more BVOH is to be used per day, professional organic effluent treatment will be required.
TECHNICAL SPECIFICATIONS
Diameter accuracy |
1.75 mm ± 0.07 mm |
Material net weight |
0.5 kg |
Filament length |
182 m |
Melt temperature |
176 °C |
Melt Flow Rate @ 230 °C, 21.1N |
7.5 g/(10 minutes) |
Density |
1.14 g/cm3 |
Viscat softening temperature |
92 °C |
Glass transition temperature |
68 °C |
Flexural strength |
71 MPa |
Flexural modulus |
2900 MPa |
Tensile Strength |
45 MPa |
Tensile Elasticity |
9.0% |
 |
 |
SPOOL DIMENSIONS |
 |
Spool diameter |
200 mm |
Spool depth |
72 mm |
Hub diameter |
102 mm |
Hub hole diameter |
51 mm |
 |
 |
RECOMMENDED PRINTER SET UP |
 |
Extrusion temperature |
210±10 °C |
Bed temperature |
60 °C |
Printing speed |
30 mm/s |
