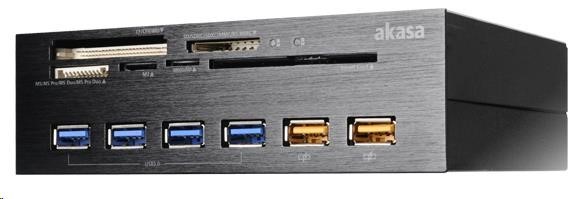

InterConnect EX
5-slot USB 3.0 card reader
4 port USB 3.0 HUB
USB 2.0 electronic ID and smart card reader
2 fast charging port up to 2.4A
Brushed aluminum fascia panel
Charging port support smart phone or tablet fast charging
High performance USB fast charging controller provide auto detect and...
prečítať celé
InterConnect EX
- 5-slot USB 3.0 card reader
- 4 port USB 3.0 HUB
- USB 2.0 electronic ID and smart card reader
- 2 fast charging port up to 2.4A
- Brushed aluminum fascia panel
- Charging port support smart phone or tablet fast charging
- High performance USB fast charging controller provide auto detect and charging
- Meet USB battery charging specification
TECHNICAL SPECIFICATIONS
| Application |
5.25" PC bay |
| Function |
USB 3.0 port x 4 card reader slot x 5 smart card reader port x 1 charging port x 2 |
| Memory card types |
Smart Card (bank cards, access cards, based on ISO7816 implementation) Compact Flash (CF I, CF II, Ultra, Extreme, I-Pro, Ultimate, MD) Memory Stick (MS Pro, MS Pro Duo, Magic Gate, Extreme, Ultra) Secure Digital (SDXC, SDHC, SD, Ultra, Extreme, Elite Pro, High Speed, MMC, MMC Mobile) • 256GByte for SDXC • 32GByte for SDHC M2 (Memory Stick Micro M2) microSD (microSDHC, micro SDXC, High Capacity) |
| Rear connectors |
internal motherboard USB 3.0 connector internal motherboard USB 2.0 connector 4-Pin PSU molex connector SATA power connector |
| Cable length |
Internal USB 3.0 cable: 650mm Internal USB 2.0 cable: 650mm Molex power cable: 150mm SATA power cable: 150mm |
| Data transfer rate |
5Gb/s (USB 3.0) and 480Mb/s (USB 2.0) |
| LED indication |
Card In & Data Transfer |
| Power requirement |
DC 5V |
| Supported OS |
Windows XP / Vista / 7 / 8.X / 10 |
| Product code |
AK-HC-07BK |
