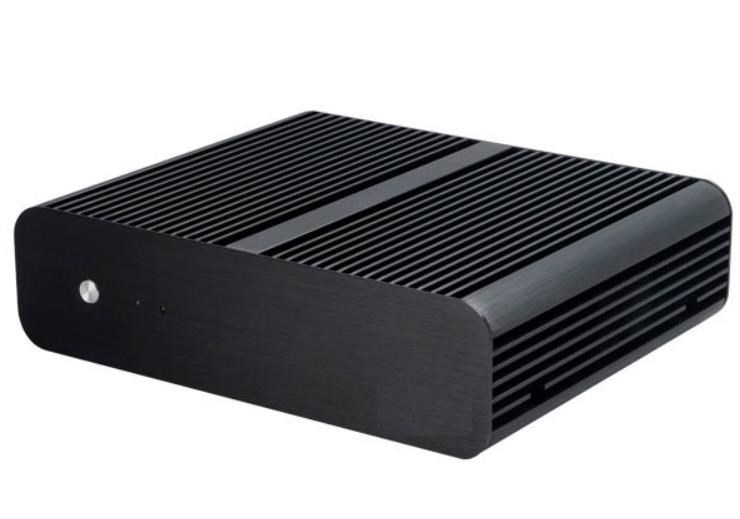

Fanless case for thin mini-ITX systems
Features
- Solid crafted aluminium case
- Fanless CPU cooling design
- Designed for thin mini-ITX motherboard
- Suitable for VESA mounting
- Recommended max CPU TDP 35W
- no logo
TECHNICAL SPECIFICATIONS
Material |
Aluminium with anodized black |
Panel material |
Aluminium |
Motherboards types |
Thin mini-ITX with DC onboard |
Dimensions (W x D x H) |
228 x 187 x 61.5mm |
Weight |
2200g |
Internal bays |
one for 2.5" HDD / SSD (max height 12mm) |
Antenna fitting holes |
2 |
VESA mounting |
Support |
External AC power adapter (AK-ITX05-BK12 only) |
120W 100-240V~2.0A (input), +19V-6.32A (output) 7.4 mm/OD (outer diameter) and 5.0 mm/ID (inner diameter) plug (Where the inner contact is +19 (±10%) V DC and the shell is GND.) |
Product code |
AK-ITX05M-BK |
|
|
CPU and Motherboard Compatibility List |
|
6th Generation Intel Core i3 Processors I3-6300T I3-6100T |
MOTHERBOARD:
- Asus
H110T Q170T
- ASRock
H110TM-ITX IMB-191 IMB-190-E IMB-193
- Gigabyte
GA-H170TN GA-H110TN GA-Q170TN
- ECS
H110T-SI01
- Aaeon
EMB-H110B EMB-Q170B
- Jetway
NF595-H110
- Mitac
PH11SI PH12SI (SKU D)
|
4th Generation Intel Core i7 Processors i7-4765T 35W 4th Generation Intel Core i5 Processors i5-4570T 35W 4th Generation Intel Core i3 Processors i3-4130T 35W i3-4330T 35W |
MOTHERBOARD:
- Asus
Q87T H81T
- ASRock
H81TM-ITX ECS H87H3-TI
|
3th Generation Intel Core i5 Processors i5-3470T 35W 3th Generation Intel Core i3 Processors i3-3220T 35W i3-3240T 35W i3-3250T 35W |
MOTHERBOARD:
- Intel
DQ77KB DH61AG
- Asrock
B75TM-ITX H61TM-ITX H77TM-ITX Z77TM-ITX
- ECS
H61H-G11 H61H2-TI Q77H2-TI B75H2-TI H87H3-TI
- Gigabyte
GA-H77TN GA-H61TN GA-Q87TN GA-H87TN GA-B85TN GA-H81TN MSH87DI MQ77TN MSH61DI
|
