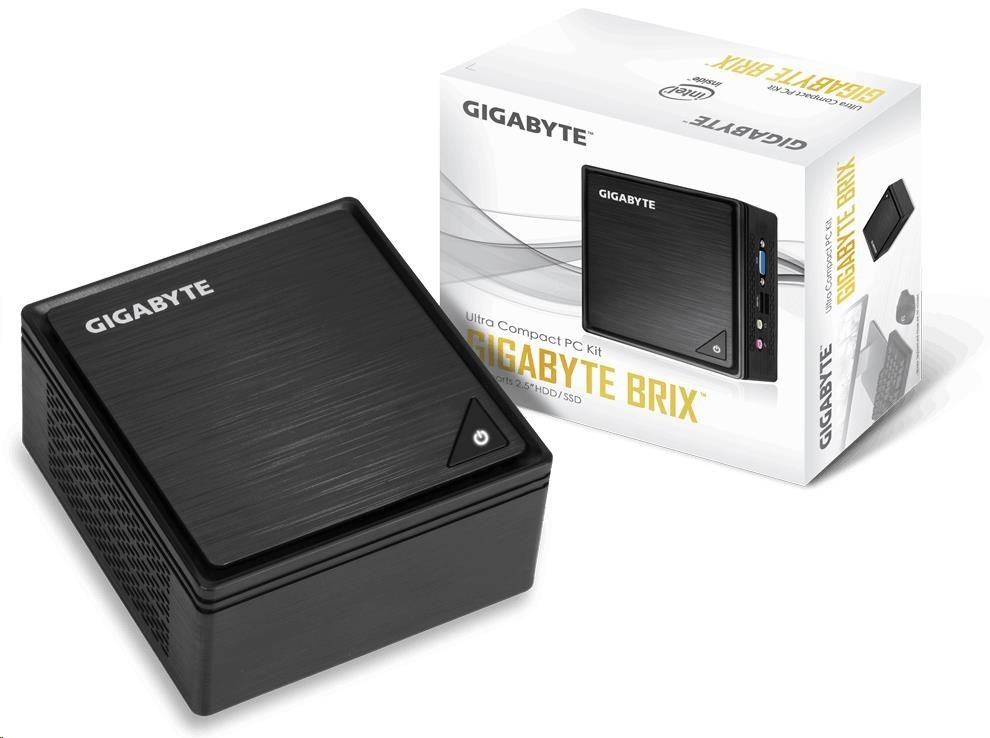

GB-BPCE-3350C (rev. 1.0)
Ultra Compact PC kit
Features
- Features 14nm Intel N3350 to deliver to the most intuitive and integrated operating systems in the world
- Supports 2.5” thickness 7.0/ 9.5mm Hard Drives (1 x 6Gbps SATA3)
- Ultra compact PC design – 0.69L (56.1 x 107.6 x 114.4mm)
- 1 x SO-DIMM DDR3L 1.35V Slots (1333/ 1600/ 1866 MHz)
- Intel IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card
- Supports dual displays via a VGA and a HDMI port
- Gigabit LAN
- Audio jack (Headphone & Microphone)
- VESA mounting bracket (75 x 75mm + 100 x 100mm)
- Support Fanless Design
* Wireless module inclusion may vary based on local distribution.
TECHNICAL SPECIFICATIONS
Dimension |
56.1 x 107.6 x 114.4 mm (2.21" x 4.24" x 4.5") |
Motherboard Size |
100 x 105 mm |
CPU |
Intel Celeron Processor N3350, 2.4GHz, 2 core (TDP 6W) |
Memory |
1 x SO-DIMM DDR3L slots (DDR3 1.35V) 1333/ 1600/ 1866 MHz Max. 8GB |
LAN |
Gigabit LAN (Realtek RTL8111HS) |
Wifi Card |
Intel Dual Band Wireless-AC 3168 |
Graphics |
Intel HD Graphics 500 |
Audio |
Realtek ALC891 |
VGA Resolution (Max.) |
1920 x 1200 @60 Hz |
HDMI Resolution (Max.) |
3840 x 2160 @30 Hz |
Expansion Slots |
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card |
Rear I/O |
1 x HDMI (1.4) 2 x USB 3.0 1 x RJ45 1 x DC-In 1 x Kensington lock slot |
Side I/O |
1 x VGA 1 x Headphone & Microphone jack 2 x USB 3.0 |
Storage |
Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3) |
Power Supply |
Input: AC 100-240V Output: DC 19V 2.1A |
VESA |
Bracket included Supports 75 x 75 and 100 x 100 mm |
Environment |
System Environment Operating Temperature: 0°C to +35°C System Storage Temperature: -20°C to +60°C |
Support OS |
WIN10 64bit |
