USB 3.1 HOST Card - PC external port extension cardUSB 3.1 SuperSpeed+ data transfer rate up to 10GbpsCompliant with USB 3.1 specification Gen2Compliant with PCI Express Base 3.0 SpecificationSupport PCI Express Gen 2x2 or Gen3x1Backward compatible with USB 3.0 and USB 2.0Over current...
prečítať celé

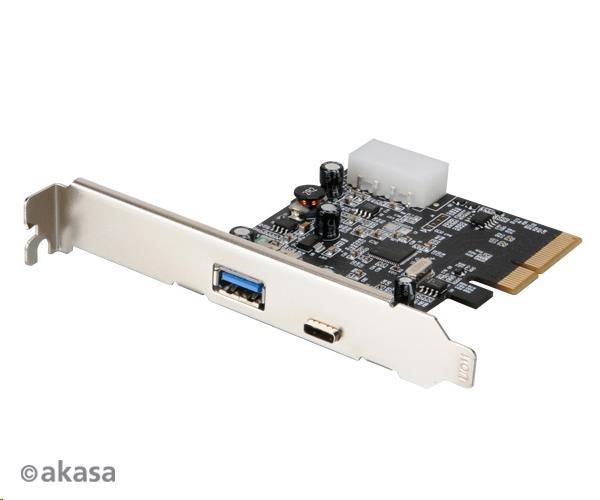

USB 3.1 HOST Card - PC external port extension card
- USB 3.1 SuperSpeed+ data transfer rate up to 10Gbps
- Compliant with USB 3.1 specification Gen2
- Compliant with PCI Express Base 3.0 Specification
- Support PCI Express Gen 2x2 or Gen3x1
- Backward compatible with USB 3.0 and USB 2.0
- Over current protection
- Built-in 4-pin power connector for receiving extra power supply from system
TECHNICAL SPECIFICATIONS
Application |
USB 3.1 PC system extension card |
Designed for |
PC systems with spare PCIe slot |
Ports |
USB 3.1 Type-A x 1 USB 3.1 Type-C x 1 |
Power connector |
DC +5V / Molex-4Pin |
Transfer rate |
10.0 Gbps (max) |
Support |
Windows XP / Vista / 7 / 8.X / 10 |
Product code |
AK-PCCU3-05 |
