For the extension of supply hoses if the location of the appliance and water connection are too far away from each otherExtreme kink resistance, excellent flexibility and high flow capacityOffers the greatest possible protection against water damage for washing machines, dishwashers or...
prečítať celé
- For the extension of supply hoses if the location of the appliance and water connection are too far away from each other
- Extreme kink resistance, excellent flexibility and high flow capacity
- Offers the greatest possible protection against water damage for washing machines, dishwashers or connections to drinking water purification systems (ice cube makers, boilers, side-by-side refrigerators, etc.)
- Also ideally suited for extending fixed-connection supply hoses with water stop devices (Aquastop)
- High-quality woven material made from rust-free stainless steel wire
- DVGW type examination certificate: DW-0304BT0257
- Approval as a hose line for drinking water installation (Group I) with DVGW tests W 543, W 270 and BGA KTW-A 0304 confirming excellent microbiological purity and mechanical resilience
Technical Details:

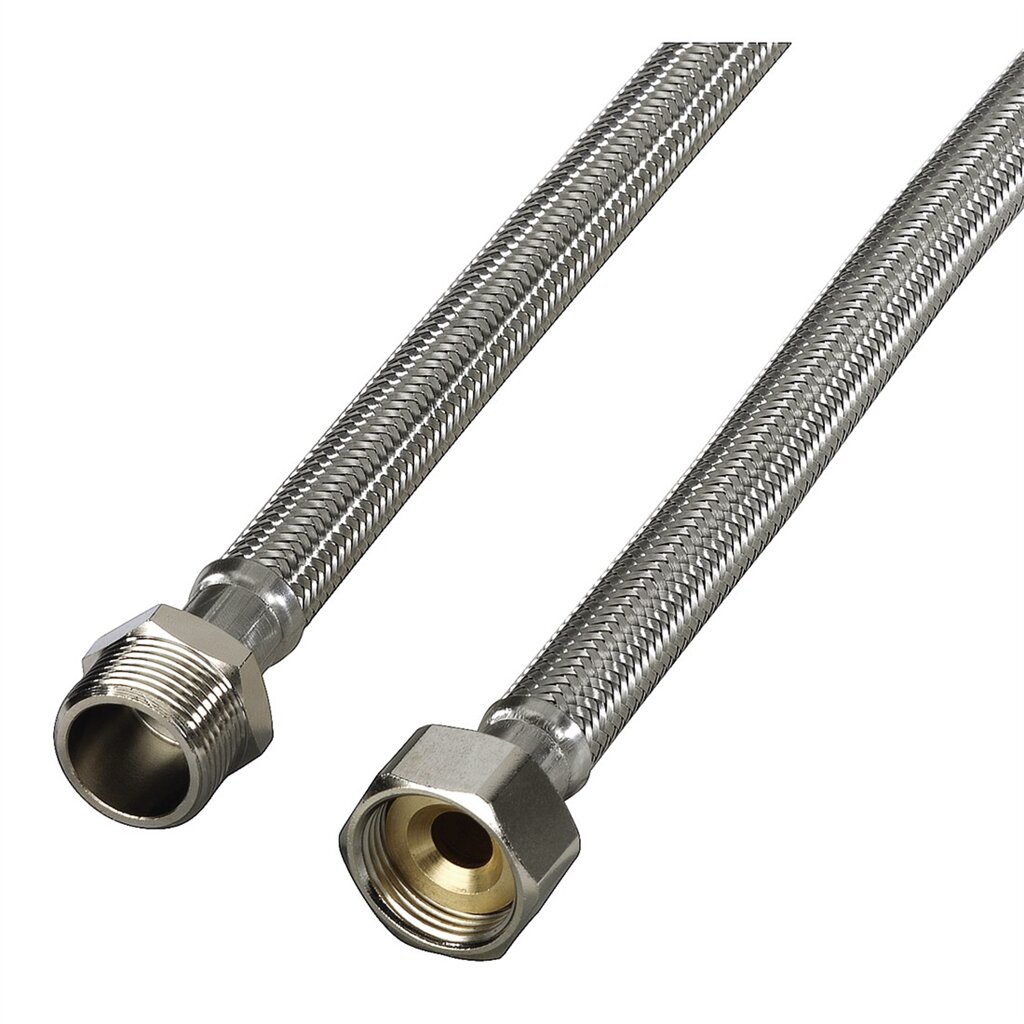

- Nominal Diameter/mm 1: 3/4" (DN:20), 26.9 mm
- Nominal Diameter/mm 2: 3/4" (DN:20), 26.9 mm
- Type of Connection: Threatfitting External Threat
- Burst Pressure: 90 bar
- Material: Rust-free Steel Wire Braid
- Maximum Operating Pressure : 10 bar
- Maximum Temperature: 93 °C
- Length: 1 m
- Usage: Dishwasher/Drinking Water Installations
Scope Of Delivery:
- 1 reinforced supply hose extension
