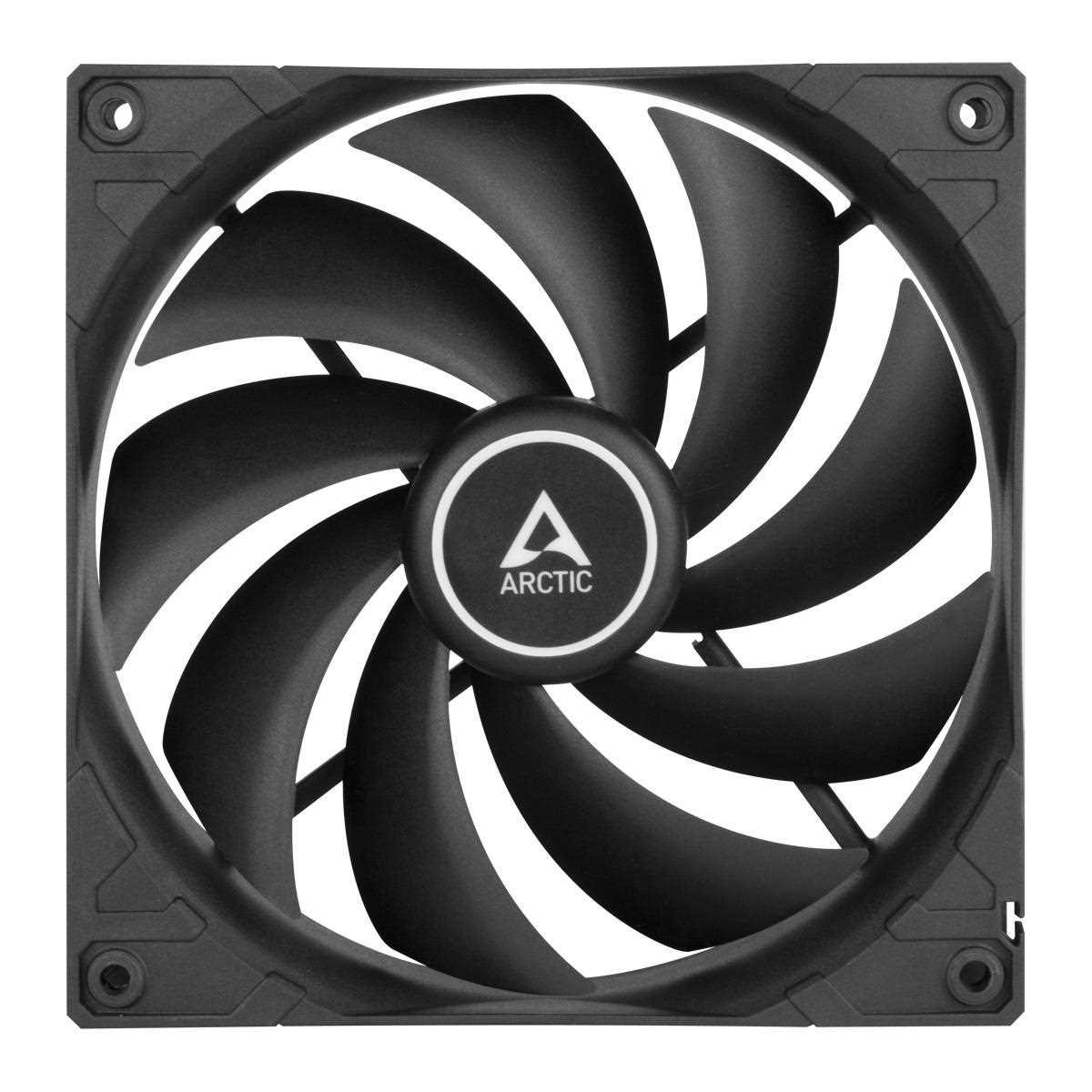

F14
140 mm Standard Case Fan
LONG SERVICE LIFE
- The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life.
INNOVATIVE DESIGN ENABLES QUIET AND EFFICIENT VENTILATION
- The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation. The impeller was designed with a focus on minimzing the noise level yet delivering the desired airflow and pressure.
TWO WAY INSTALLATION
- Blow warm air out of the case
- Draw cool air into your case
TECHNICAL SPECIFICATIONS
Performance |
Fan Speed |
1350 rpm |
Airflow |
74 CFM/ 126 m3/h |
Static Pressure |
1.6 mm H2O |
Noise Level |
0.5 Sone |
Operating Ambient Temperature |
0 - 40 °C |
Fan |
Fan Frame |
Standard |
Control Type |
Fixed Speed |
Connector |
3-Pin-Connector |
Fan Bearing |
Fluid Dynamic Bearing |
Electric Characteristics |
Typical Voltage |
12 V DC |
Starting Voltage |
6 V |
Current/Voltage |
0.20 A / 12 V |
Cable Lenght |
400 mm |
Size & Weight |
Lenght |
140 mm |
Width |
140 mm |
Height |
27 mm |
Weight |
180 g |
