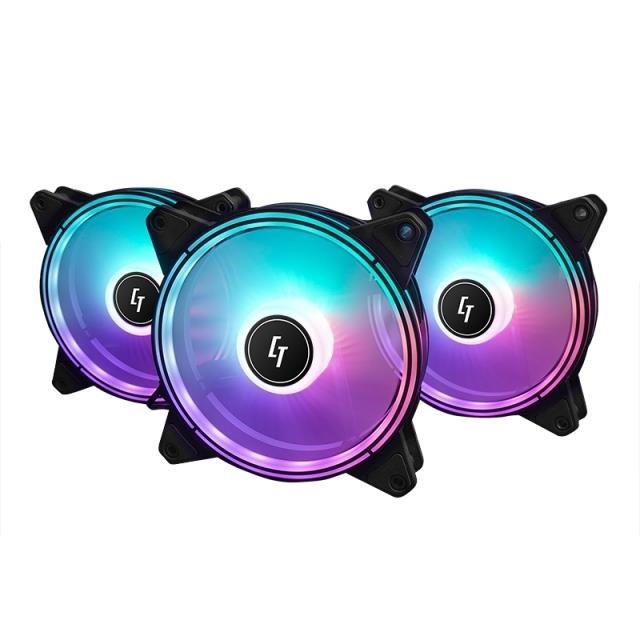

NF-3012-RGB
- 9 blade design with enhanced air pressure technology
- Dual-Ring setup for perfect illumination inside and out
- 32 addressable LEDs offering complex RGB effects
- 4-PIN PWM fan-speed control and 3-PIN +5V A-RGB M/B-Sync Technologies supported
TECHNICAL SPECIFICATIONS
Model |
NOVA Set |
Article No. |
NF-3012-RGB |
Connectors |
Fan: 4 pin PWM ; ARGB: 3 pin |
Dimension |
120 x 120 x 25mm |
Bearing Type |
Hydraulic |
LED Type |
Addressable RGB (A-RGB) |
LED Count |
32 pcs (Inner Ring: 16 pcs ; Outer Ring: 16pcs ) |
Rated Voltage |
FAN: DC12V ; LED: DC5V |
Rated Current |
0.29A (Max: 0.65A) |
Operating Voltage |
7V -13.2V |
Fan Speed (RPM) |
1600 RPM ± 10% |
Air Flow (CFM) |
68 CFM |
Air Pressure (mmH2O) |
2.2 mmH2O |
Noise Level (dBA) |
24 dBA (Max: 28) |
Scope of delivery |
3x 120mm A-RGB Dual Ring Rainbow fan, 1x Control Hub DF-100 (5x 4PIN PWM fan ports, 6x +5V A-RGB LED ports), |
RGB Sync Compatibilities |
ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC, GIGABYTE™ RGB FUSION |
Warranty |
24 Months |
