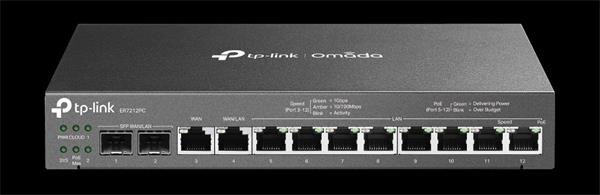

ER7212PC

Gigabitový VPN router Omada 3 v 1

Router 3 v 1: Plní funkciu routera, PoE switcha a kontroléra Omada.

Profesionálny hardvér: Dvojjadrový procesor 1,2 GHz s 1 GB pamäte DDR3 zaisťuje viac ako dostatok výkonu až pre 12 gigabitových portov.

Až 4 ethernetové porty WAN: 2 gigabitové porty SFP WAN/LAN, 1 gigabitový port RJ45 WAN a 1 gigabitový port RJ45 WAN/LAN.

PoE s výstupným napájaním 110 W: 8 portov PoE+ RJ45 LAN zodpovedajúcich štandardu 802.3at/af s celkovým výstupným napájaním 110 W.*

Centralizovaná správa: Cloudový prístup a aplikácia Omada pre pohodlnú a jednoduchú správu.

VPN s vysokým zabezpečením: Podporuje pripojenie IPsec VPN, OpenVPN a L2TP/PPTP VPN.

Jednoduchá inštalácia: Kompaktné prevedenie bez ventilátora pre umiestnenie na stôl alebo montáž na stenu.



HARDWARE FEATURES

Standards and Protocols • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q

• TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP

Interface • 2 Gigabit SFP WAN/LAN ports

• 1 Gigabit WAN port

• 1 Gigabit LAN/WAN port

• 8 Gigabit LAN ports

Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)

EIA/TIA-568 100? STP (Max 100 m)

• 100BASE-TX: UTP category 5, 5e cable (Max 100 m)

EIA/TIA-568 100? STP (Max 100 m)

• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

Fan Quantity Fanless

Button Reset Button

Power Supply 53.5VDC/2.43A Adapter

PoE Budget 8 ports PoE+ output, 110 W PoE Budget

Flash 8Mb Nor + 4 GB EMMC

DRAM 1 GB DDR3

Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)

Protection 4 kV surge protection

Enclosure Steel

Mounting Desktop/Wall-mount

PERFORMANCE

Concurrent Session 24,980

New Sessions /Second 1,900

NAT (Static IP) 935.5 Mbps / 942.1 Mbps

NAT(DHCP) 940.2 Mbps / 941.7 Mbps

NAT(PPPoE) 913.1 Mbps / 935.2 Mbps

NAT (L2TP) 545.0 Mbps / 912.7 Mbps

NAT (PPTP) 523.0 Mbps / 912.8 Mbps

IPsec VPN Throughput (AES256) 168.5 Mbps

OpenVPN 34 Mbps

L2TP VPN Throughput • Unencrypted: 845.3 Mbps

• Encrypted: 333.2 Mbps

PPTP VPN Throughput • Unencrypted: 1012.6 Mbps

• Encrypted: 401.4 Mbps

66 Byte Packet forwarding rate 154,069 pps / 156,977 pps

1,518 Byte Packet forwarding rate 81,193 pps / 81,193 pps

BASIC FUNCTIONS

WAN Connection Type • Static IP

• Dynamic IP

• PPPoE

• PPTP

• L2TP

DHCP • DHCP Server

• DHCP Address Reservation

• Multi-IP Interfaces

• Multi-Net DHCP

IPv6 support

VLAN 802.1Q VLAN

IPTV IGMP v2/v3 Proxy

ADVANCED FUNCTIONS

Advanced Routing • Static Routing

• Policy Routing

Bandwidth Control IP/Port-based Bandwidth Control

Load Balance • Intelligent Load Balance

• Application Optimized Routing

• Link Backup

• Online Detection

NAT • Multi-Net NAT

• Virtual Server

• NAT-DMZ

• FTP/H.323/SIP/IPSec/PPTP ALG

• UPnP

Session Limit IP-based Session Limit

VPN

IPsec VPN • 20 IPSec VPN Tunnels

• LAN-to-LAN, Client-to-LAN

• Main, Aggressive Negotiation Mode

• AES128, AES192, AES256 Encryption Algorithm

• IKE v1/v2

• SHA1, SHA2 Authentication Algorithm

• NAT Traversal (NAT-T)

• Dead Peer Detection (DPD)

• Perfect Forward Secrecy (PFS)

PPTP VPN • PPTP VPN Server

• PPTP VPN Client (10)

• 16 Tunnels

• PPTP with MPPE Encryption

L2TP VPN • L2TP VPN Server

• L2TP VPN Client (10)

• 16 Tunnels

• L2TP over IPSec

OpenVPN • OpenVPN Server

• OpenVPN Client (10)§

• 16 OpenVPN Tunnels

SECURITY

Filtering URL Filtering

Attack Defense • TCP/UDP/ICMP Flood Defense

• Block TCP Scan (Stealth FIN/Xmas/Null)

• Block Ping from WAN

Access Control Source/Destination IP Based Access Control

AUTHENTICATION

Web Authentication • No Authentication

• Simple Password

• Hotspot (Local User / Voucher / SMS / Radius)

• External Radius Sever

• External Portal Sever

• Facebook

MANAGEMENT

Omada App Yes

Cloud Access Yes

Service Dynamic DNS (Dyndns, No-IP)

Maintenance • Web Management Interface

• Remote Management

• Export & Import Configuration

• SNMP v1/v2c/v3

• Syslog Support

Management Features • Automatic Device Discovery

• Intelligent Network Monitoring

• Abnormal Event Warnings

• Unified Configuration

• Reboot Schedule

• Captive Portal Configuration

• Management up to 1 Router, 2 Switches and 10 EAPs

OTHERS

Certification CE, FCC, RoHS

Package Contents • ER7212PC

• Power Adapter

• Power Cord

• Quick Installation Guide

System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10

• MAC OS, NetWare, UNIX or Linux

Environment • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)

• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)

• Operating Humidity: 10% to 90% non-condensing

• Storage Humidity: 5% to 90% non-condensing
