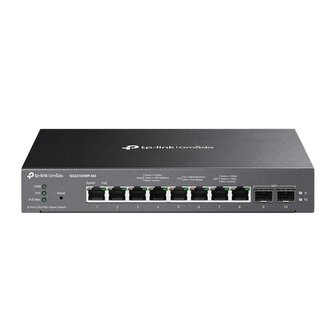

SG2210XMP-M2
\nOmada inteligentný switch s 8 portami 2.5GBASE-T podporujúcimi PoE+ a 2 portami 10GE SFP+
\n8× 2.5 Gb/s 802.3at/af kompatibilný PoE+ porty
\n2× 10G SFP+ sloty
\nCelkový PoE rozpočez 160 W s až 30 W PoE výstupom per port
\nCentralizovaná cloudová správa cez web alebo Omada aplikáciu†
\nPodporuje samostatnú správu
\nStatický routing
\nDizajn bez ventilátorov pre tichý chod
\nNa stôl/montáž na stenu
\n
\nHARDWARE FEATURES
\nInterface • 8× 100/1000/2500 Mbps RJ45 PoE+ Ports
\n• 2× 10G SFP+ Slots
\nFan Quantity Fanless
\nPhysical Security Lock ?
\nPower Supply 53.5VDC/3.37A Power Adapter
\nPoE Ports (RJ45) • Standard: 802.3at/af compliant
\n• PoE+ Ports: 8 Ports
\n• PoE Power Budget: 160 W
\nDimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm)
\nMounting Desktop/Wall-Mounting
\nMax Power Consumption 180.1 W (110V/60Hz) (with 160 W PD connected)
\nMax Heat Dissipation 614.58 BTU/hr (110V/60Hz) (with 160 W PD connected)
\nPERFORMANCE
\nSwitching Capacity 80 Gbps
\nPacket Forwarding Rate 59.52 Mpps
\nMAC Address Table 16 K
\nPacket Buffer Memory 12 Mbit
\nJumbo Frame 9 KB
\nSOFTWARE FEATURES
\nQuality of Service • 802.1p CoS/DSCP priority
\n• 8 priority queues
\n• Priority Schedule Mode
\n- SP (Strict Priority)
\n- WRR (Weighted Round Robin)
\n• Queue Weight Config
\n• Bandwidth Control
\n- Port/Flow based Rating Limit
\n• Smoother Performance
\n• Storm Control
\n- Multiple Control Modes(kbps/ratio)
\n- Broadcast/Multicast/Unknown-Unicast Control
\nL2 and L2+ Features • 32 IP Interfaces: Support IPv4/IPv6 Interface
\n• Static Routing: 32 IPv4/IPv6 Static Routes
\n• DHCP Server
\n• DHCP Relay
\n- DHCP Interface Relay
\n- DHCP VLAN Relay
\n• DHCP L2 Relay
\n• Static ARP
\n• Proxy ARP
\n• Gratuitous ARP
\n• Link Aggregation
\n• Spanning Tree Protocol
\n• Loopback Detection
\n• 802.3x Flow Control
\n• Mirroring
\n• Device Link Detect Protocol (DLDP)
\n• 802.1ab LLDP/ LLDP-MED
\nL2 Multicast • 511 IPv4, IPv6 shared multicast groups
\n• IGMP Snooping
\n• Multicast VLAN Registration (MVR)
\n• Multicast Filtering
\n• Limited IP Multicast (256 profiles and 16 entries per profile)
\nAdvanced Features • Automatic Device Discovery
\n• Batch Configuration
\n• Batch Firmware Upgrading
\n• Intelligent Network Monitoring
\n• Abnormal Event Warnings
\n• Unified Configuration
\n• Reboot Schedule
\nVLAN • VLAN Group
\n- Max 4K VLAN Groups
\n• 802.1Q Tagged VLAN
\n• MAC VLAN: 12 Entries
\n• Protocol VLAN
\n• GVRP
\n• Voice VLAN
\nAccess Control List • Support up to 230 entries
\n• Time-based ACL
\n• MAC ACL
\n• IP ACL
\n• IPv6 ACL
\n• Combined ACL
\n• Rule Operation: Permit/Deny
\n• Policy Action
\n- Mirroring
\n- Redirect
\n- Rate Limit
\n- QoS Remark
\n• ACL Rules Binding
\n- Port Binding
\n- VLAN Binding
\nSecurity • IP-MAC-Port Binding
\n• AAA
\n• 802.1X
\n- Port based authentication
\n- MAC (Host) based authentication
\n- Authentication Method includes PAP/EAP-MD5
\n- MAB
\n- Guest VLAN
\n- Support Radius authentication and accountability
\n• IP/IPv6-MAC Binding
\n- 512 Binding Entries
\n- DHCP Snooping
\n- DHCPv6 Snooping
\n- ARP Inspection
\n- ND Detection
\n- ND Snooping
\n• IP Source Guard
\n- 253 Entries
\n- Source IP+Source MAC
\n• IPv6 Source Guard
\n- 183 Entries
\n- Source IPv6 Address+Source MAC
\n• DoS Defend
\n• DHCP Filter
\n• Static/Dynamic/Permanent Port Security
\n- Up to 64 MAC addresses per port
\n• Broadcast/Multicast/Unicast Storm Control
\n• Port Isolation
\n• Secure web management through HTTPS with SSLv3/TLS 1.2
\n• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
\n• IP/Port/MAC based access control
\nIPv6 • IPv6 Static Routing and ACL
\n• IPv6 Dual IPv4/IPv6
\n• IPv6 Interface
\n• Multicast Listener Discovery (MLD) Snooping
\n• IPv6 neighbor discovery (ND)
\n• Path maximum transmission unit (MTU) discovery
\n• Internet Control Message Protocol (ICMP) version 6
\n• TCPv6/UDPv6
\n• IPv6 applications
\n- DHCPv6 Client
\n- Ping6
\n- Tracert6
\n- Telnet(v6)
\n- IPv6 SNMP
\n- IPv6 SSH
\n- IPv6 SSL
\n- Http/Https
\n- IPv6 TFTP
\nMIBs • MIB II (RFC1213)
\n• Interface MIB (RFC2233)
\n• Ethernet Interface MIB (RFC1643)
\n• Bridge MIB (RFC1493)
\n• P/Q-Bridge MIB (RFC2674)
\n• RMON MIB (RFC2819)
\n• RMON2 MIB (RFC2021)
\n• Radius Accounting Client MIB (RFC2620)
\n• Radius Authentication Client MIB (RFC2618)
\n• Remote Ping, Traceroute MIB (RFC2925)
\n• Support TP-Link private MIB
\nMANAGEMENT
\nOmada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
\nCentralized Management • Omada Cloud-Based Controller
\n• Omada Hardware Controller
\n• Omada Software Controller
\nCloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
\nZero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
\nManagement Features • Web-based GUI
\n• Command Line Interface (CLI) through telnet
\n• SNMPv1/v2c/v3
\n• SNMP Trap/Inform
\n• RMON (1,2,3,9 groups)
\n• SDM Template
\n• DHCP/BOOTP Client
\n• Dual Image, Dual Configuration
\n• CPU Monitoring
\n• Cable Diagnostics
\n• EEE
\n• SNTP
\n• System Log
\nOTHERS
\nCertification CE, FCC, RoHS
\nPackage Contents • SG2210XHP-M2 Switch
\n• Power Adapter
\n• Quick Installation Guide
\n• Rubber Feet
\nSystem Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
\nEnvironment • Operating Temperature: 0–40 ? (32–104 ?);
\n• Storage Temperature: -40–70 ? (-40–158 ?)
\n• Operating Humidity: 10–90% RH non-condensing
\n• Storage Humidity: 5–90% RH non-condensing
