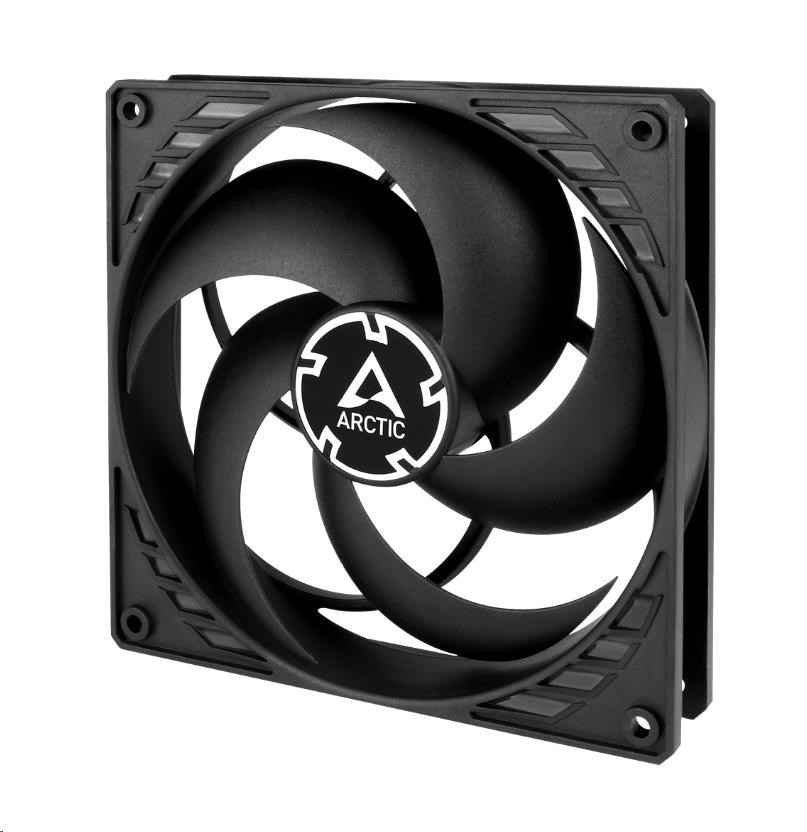

P14 Silent
OPTIMISED FOR STATIC PRESSURE - During the development of the new P14 Silent, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 Silent is particularly suitable for use on heatsinks and radiators.
HIGH QUALITY BEARING - Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
VIRTUALLY SILENT MOTOR - At low fan speed, the motor is the main source of unwanted noise. A motor developed in Germany with an enhanced bearing reduces friction and noise.
TWO WAY INSTALLATION
- Push warm air out of the case
- Pull cool air into your case
TECHNICAL SPECIFICATIONS
Performance |
Fan Speed |
950 rpm |
Airflow |
29.8 CFM / 50.66 m3/h |
Static Pressure |
0.60 mm/H2O |
Noise Level |
0.08 Sone |
Fan |
Fan Frame |
Standard |
Controll Type |
Fixed Speed |
Connector |
3-Pin-Connector |
Fan Bearing |
Fluid Dynamic Bearing |
Electric Characteristics |
Typical Voltage |
12 V DC |
Starting Voltage |
7 V |
Current / Voltage |
0.08 A / 12 V |
Cable Leght |
400 mm |
Size & Weight |
Lenght |
140 mm |
Width |
140 mm |
Height |
27 mm |
Weight |
191 g |
